TOPAS-PRIME Collinear OPA – LIGHT CONVERSION

Collinear Optical Parametric Amplifier

189 nm – 20 μm tuning range
Up to 6 mJ pump pulse energy
> 25% conversion efficiency
CEP stabilization of Idler
Fresh pump channel for improved sum‑frequency generation

Download datasheet

TOPAS-PRIME is a collinear femtosecond optical parametric amplifier (OPA) designed for use with Ti:Sapphire lasers.

TOPAS-PRIME accepts pump pulse energies of up to 3.5 mJ at 20 – 70 fs (up to 4 mJ at 70 – 200 fs).
TOPAS-PRIME-PLUS accepts higher pump pulse energies, up to 6 mJ at 70 – 200 fs.

Both models include wavelength extension options, offering a tunable range from 189 nm to 20 μm.

Ultrafast (20–70 fs)

Specifications notes

TOPAS-PRIME and TOPAS-PRIME-PLUS specifications are given for the following pump laser parameters:

Wavelength: 800 nm
Pulse energy: 1 mJ
Repetition rate: 1 kHz
Pulse duration: 30 – 40 fs
Beam profile: Gaussian

Note 1: Specifications depend on the pump wavelength and pulse duration. If these differ from the values listed above, contact sales@lightcon.com.

Note 2: TOPAS-PRIME output pulse energy scales linearly within the 1 – 5 mJ range, provided the device is installed and optimized for a specific pump energy. Re-optimization is required if the pump energy changes by more than 10% from the installation value.

Pump laser requirements


Model	TOPAS‑PRIME	TOPAS‑PRIME‑PLUS
Pump wavelength	770 – 830 nm	770 – 830 nm
Pump wavelength	770 – 830 nm
Pump pulse duration (FWHM)	20 – 70 fs	20 – 70 fs
Pump pulse duration (FWHM)	20 – 70 fs
Pump pulse energy	0.15 – 3.5 mJ	0.15 – 5 mJ
Repetition rate	< 25 kHz ¹⁾	< 25 kHz ¹⁾
Repetition rate	< 25 kHz ¹⁾
Maximum pump power	25 W ²⁾	25 W ²⁾
Maximum pump power	25 W ²⁾
Polarization	Horizontal	Horizontal
Polarization	Horizontal
Spectral bandwidth	< 1.2 × transform limit	< 1.2 × transform limit
Spectral bandwidth	< 1.2 × transform limit
Pulse-to-pulse energy stability	< 1 % RMS deviation ³⁾	< 1 % RMS deviation ³⁾
Pulse-to-pulse energy stability	< 1 % RMS deviation ³⁾
Pulse duration stability	< 1 % pulse-to-pulse ⁴⁾	< 1 % pulse-to-pulse ⁴⁾
Pulse duration stability	< 1 % pulse-to-pulse ⁴⁾
Pulse front tilt	< 10% of pulse duration	< 10% of pulse duration
Pulse front tilt	< 10% of pulse duration
Pulse contrast	< 1 : 20	< 1 : 20
Pulse contrast	< 1 : 20
Beam quality, M²	< 1.3 ⁵⁾	< 1.3 ⁵⁾
Beam quality, M²	< 1.3 ⁵⁾
Beam astigmatism	< 0.15 ⁶⁾	< 0.15 ⁶⁾
Beam astigmatism	< 0.15 ⁶⁾
Beam spatial profile	Gaussian – Super Gaussian	Gaussian – Super Gaussian
Beam spatial profile	Gaussian – Super Gaussian
Intensity modulation	< 15%, no hotspots ⁷⁾	< 15%, no hotspots ⁷⁾
Intensity modulation	< 15%, no hotspots ⁷⁾
Beam pointing stability	< 10 μrad ⁸⁾	< 10 μrad ⁸⁾
Beam pointing stability	< 10 μrad ⁸⁾
Beam divergence	< 1.2 × diffraction limit	< 1.2 × diffraction limit
Beam divergence	< 1.2 × diffraction limit
Beam height from the optical table	125 – 185 mm	125 – 185 mm
Beam height from the optical table	125 – 185 mm
Beam diameter, 1/e²	< 11 mm ⁹⁾	< 11 mm ⁹⁾
Beam diameter, 1/e²	< 11 mm ⁹⁾


Model	TOPAS‑PRIME	TOPAS‑PRIME‑PLUS

The maximum repetition rate for DFG1 (NDFG1) option is 1 kHz.
Contact sales@lightcon.com for higher pump power options.
Normalized to average pulse energy. Expressed as normalized root mean squared deviation (NRMSD).
Normalized to average pulse duration. Expressed as NRMSD.
M² specification valid for Gaussian beam.
Normalized astigmatism – difference of the waist positions, divided by Rayleigh length.
Normalized to Gaussian or Super-Gaussian fits. Expressed as normalized root mean squared deviation (NRMSD).
Expressed as NRMSD, full angle.
An optional external telescope can be ordered for a beam diameter of 11 – 28 mm.

Output


Model	TOPAS-PRIME	TOPAS-PRIME-PLUS
Tuning range	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)
Tuning range	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)
Conversion efficiency at peak (Signal and Idler combined)	> 25%	> 25%
Conversion efficiency at peak (Signal and Idler combined)	> 25%
Pulse duration	(1 – 1.5) × pump pulse duration @ 1160 – 1550 nm < 2 × pump pulse duration @ 1550 – 2600 nm	(1 – 1.5) × pump pulse duration @ 1160 – 1550 nm < 2 × pump pulse duration @ 1550 – 2600 nm
Pulse duration	(1 – 1.5) × pump pulse duration @ 1160 – 1550 nm < 2 × pump pulse duration @ 1550 – 2600 nm
Time-bandwidth product	< 1	< 1
Time-bandwidth product	< 1
Polarization	Vertical (Signal) Horizontal (Idler)	Vertical (Signal) Horizontal (Idler)
Polarization	Vertical (Signal) Horizontal (Idler)
Pulse-to-pulse energy stability	< 3% RMS deviation ¹⁾ @ 1160 – 1550 nm	< 3% RMS deviation ¹⁾ @ 1160 – 1550 nm
Pulse-to-pulse energy stability	< 3% RMS deviation ¹⁾ @ 1160 – 1550 nm


Model	TOPAS-PRIME	TOPAS-PRIME-PLUS

Normalized to average pulse energy. Expressed as NRMSD.

VIS–UV–DUV extensions (189 – 1160 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage(s)
Control	Fully automated	Manual change of wavelength separators	Manual change of wavelength separators
Control	Fully automated	Manual change of wavelength separators
Maximum tuning range	240 – 1160 nm	189 – 1160 nm	240 – 1160 nm
Housing	Monolithic housing	Monolithic housing	No common housing
Housing	Monolithic housing		No common housing
Number of output ports	Single	Four ¹⁾	Four ¹⁾
Number of output ports	Single	Four ¹⁾
Available with	TOPAS‑PRIME	TOPAS‑PRIME ²⁾ and TOPAS‑PRIME‑PLUS ³⁾	TOPAS‑PRIME


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage(s)

Output ports are wavelength-dependent.
Special NIRUVIS‑DUV housing in case of DUV option extending down to 189 nm.
Special NIRUVIS-DUV-HE housing in case of DUV option extending down to 189 nm.

VIS extensions (475 – 1160 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage
SHI (800 – 1160 nm)
Tuning range	800 – 1160 nm	800 – 1160 nm	800 – 1160 nm
Tuning range	800 – 1160 nm
Conversion efficiency at peak	> 2% ¹⁾	> 2% ¹⁾	> 1.5%
Conversion efficiency at peak	> 2% ¹⁾		> 1.5%
Pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration
Pulse duration	(1 – 1.5) × pump pulse duration
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical
SHS (580 – 800 nm)
Tuning range	580 – 800 nm	580 – 800 nm	580 – 800 nm
Tuning range	580 – 800 nm
Conversion efficiency at peak	> 3% ²⁾	> 3% ²⁾	> 3% ²⁾
Conversion efficiency at peak	> 3% ²⁾
Pulse duration	(1 – 1.5) × pump pulse duration @ 620 – 800 nm	(1 – 1.5) × pump pulse duration @ 620 – 800 nm	(1 – 1.5) × pump pulse duration @ 620 – 800 nm
Pulse duration	(1 – 1.5) × pump pulse duration @ 620 – 800 nm
Polarization	Vertical	Horizontal ³⁾	Horizontal
SFI (533 – 600 nm)
Fresh pump option	Always	Optional	Optional
Fresh pump option	Always	Optional
Tuning range	533 – 600 nm	533 – 600 nm	533 – 600 nm
Tuning range	533 – 600 nm
Conversion efficiency at peak	> 3% ²⁾	> 3% ²⁾	> 3% ²⁾
Conversion efficiency at peak	> 3% ²⁾
Pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration
Pulse duration	(1 – 1.5) × pump pulse duration
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical
SFS (475 – 533 nm)
Fresh pump option	Always	Optional	Optional
Fresh pump option	Always	Optional
Tuning range	475 – 533 nm	475 – 533 nm	475 – 533 nm
Tuning range	475 – 533 nm
Conversion efficiency at peak	> 4% ⁴⁾	> 4% ⁴⁾	> 4% ⁴⁾
Conversion efficiency at peak	> 4% ⁴⁾
Pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration	(1 – 1.5) × pump pulse duration
Pulse duration	(1 – 1.5) × pump pulse duration
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage

> 1.2% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
> 2.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
Vertical for NIRUVIS‑DUV.
> 3% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.

UV extensions (240 – 480 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage
FHI (400 – 480 nm)
Tuning range	400 – 480 nm	400 – 480 nm	400 – 480 nm
Tuning range	400 – 480 nm
Conversion efficiency at peak	> 0.4% ¹⁾	> 0.4% ¹⁾	> 0.25%
Conversion efficiency at peak	> 0.4% ¹⁾		> 0.25%
Pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration
Pulse duration	(1.2 – 2) × pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal
FHS (290 – 400 nm)
Tuning range	290 – 400 nm	290 – 400 nm	290 – 400 nm
Tuning range	290 – 400 nm
Conversion efficiency at peak	> 0.5%	> 0.5%	> 0.5%
Conversion efficiency at peak	> 0.5%
Pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration
Pulse duration	(1.2 – 2) × pump pulse duration
Polarization	Horizontal	Vertical ²⁾	Vertical
SH of SFI (266 – 295 nm)
Tuning range	266 – 295 nm	266 – 295 nm	266 – 295 nm
Tuning range	266 – 295 nm
Conversion efficiency at peak	> 0.3% ³⁾	> 0.3% ³⁾	> 0.3% ³⁾
Conversion efficiency at peak	> 0.3% ³⁾
Pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration	(1.2 – 2) × pump pulse duration
Pulse duration	(1.2 – 2) × pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal
SH of SFS (240 – 266 nm)
Tuning range	240 – 266 nm	240 – 266 nm	240 – 266 nm
Tuning range	240 – 266 nm
Conversion efficiency at peak	> 0.3% ³⁾	> 0.3% ³⁾	> 0.3% ³⁾
Conversion efficiency at peak	> 0.3% ³⁾
Pulse duration	< 3× pump pulse duration	< 3× pump pulse duration	< 3× pump pulse duration
Pulse duration	< 3× pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage

> 2.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
Horizontal for NIRUVIS‑DUV.
> 0.2% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.

DUV extensions (189 – 240 nm)


Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE
Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE
	Pump + FHS	Pump + SH of SFI	Pump + SH of SFS
Tuning range	215 – 240 nm	200 – 215 nm	189 – 200 nm
Conversion efficiency at peak	> 0.1% ¹⁾	Not specified	Not specified
Conversion efficiency at peak	> 0.1% ¹⁾	Not specified
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical


Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE
Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE

Assuming 15% of the pump pulse energy is allocated to the DUV channel and another 15% to the fresh pump channel.

DFG extensions (2600 – 15000 nm)


Extension	DFG1 / NDFG1W ¹⁾	NDFG1K ²⁾	DFG2 / NDFG2
Tuning range	2.6 – 9 μm	2.6 – 4.5 μm	4 – 15 μm
Conversion efficiency at peak	> 0.2%	> 0.4%	> 0.2%
Pulse duration	< 3 × pump pulse duration	< 3 × pump pulse duration	Not specified
Pulse duration	< 3 × pump pulse duration		Not specified
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal


Extension	DFG1 / NDFG1W ¹⁾	NDFG1K ²⁾	DFG2 / NDFG2

Maximum pump repetition rate – 1 kHz; crystal lifetime of 1000 – 2000 h.
Not available in the collinear configuration.

Fast (70–200 fs)

Specifications notes

TOPAS-PRIME and TOPAS-PRIME-PLUS specifications are given for the following pump laser parameters:

Wavelength: 800 nm
Pulse energy: 1 mJ
Repetition rate: 1 kHz
Pulse duration: 100 – 150 fs
Beam profile: Gaussian

Note 1: Specifications depend on the pump wavelength and pulse duration. If these differ from the values listed above, contact sales@lightcon.com.

Note 2: TOPAS-PRIME output pulse energy scales linearly within the 1 – 6 mJ range, provided the device is installed and optimized for a specific pump energy. Re-optimization is required if the pump energy changes by more than 10% from the installation value.

Pump laser requirements


Model	TOPAS‑PRIME	TOPAS‑PRIME‑PLUS
Pump wavelength	770 – 830 nm	770 – 830 nm
Pump wavelength	770 – 830 nm
Pump pulse duration (FWHM)	70 – 200 fs	70 – 200 fs
Pump pulse duration (FWHM)	70 – 200 fs
Pump pulse energy	0.15 – 4 mJ	0.15 – 6 mJ
Repetition rate	< 25 kHz ¹⁾	< 25 kHz ¹⁾
Repetition rate	< 25 kHz ¹⁾
Maximum pump power	25 W ²⁾	25 W ²⁾
Maximum pump power	25 W ²⁾
Polarization	Horizontal	Horizontal
Polarization	Horizontal
Spectral bandwidth	< 1.2 × transform limit	< 1.2 × transform limit
Spectral bandwidth	< 1.2 × transform limit
Pulse-to-pulse energy stability	< 1 % RMS deviation ³⁾	< 1 % RMS deviation ³⁾
Pulse-to-pulse energy stability	< 1 % RMS deviation ³⁾
Pulse duration stability	< 1 % pulse-to-pulse ⁴⁾	< 1 % pulse-to-pulse ⁴⁾
Pulse duration stability	< 1 % pulse-to-pulse ⁴⁾
Pulse front tilt	< 10% of pulse duration	< 10% of pulse duration
Pulse front tilt	< 10% of pulse duration
Pulse contrast	< 1 : 20	< 1 : 20
Pulse contrast	< 1 : 20
Beam quality, M²	< 1.3 ⁵⁾	< 1.3 ⁵⁾
Beam quality, M²	< 1.3 ⁵⁾
Beam astigmatism	< 0.15 ⁶⁾	< 0.15 ⁶⁾
Beam astigmatism	< 0.15 ⁶⁾
Beam spatial profile	Gaussian – Super Gaussian	Gaussian – Super Gaussian
Beam spatial profile	Gaussian – Super Gaussian
Intensity modulation	< 15%, no hotspots ⁷⁾	< 15%, no hotspots ⁷⁾
Intensity modulation	< 15%, no hotspots ⁷⁾
Beam pointing stability	< 10 μrad ⁸⁾	< 10 μrad ⁸⁾
Beam pointing stability	< 10 μrad ⁸⁾
Beam divergence	< 1.2 × diffraction limit	< 1.2 × diffraction limit
Beam divergence	< 1.2 × diffraction limit
Beam height from the optical table	125 – 185 mm	125 – 185 mm
Beam height from the optical table	125 – 185 mm
Beam diameter, 1/e²	< 11 mm ⁹⁾	< 11 mm ⁹⁾
Beam diameter, 1/e²	< 11 mm ⁹⁾


Model	TOPAS‑PRIME	TOPAS‑PRIME‑PLUS

The maximum repetition rate for DFG1 (NDFG1) option is 1 kHz.
Contact sales@lightcon.com for higher pump power options.
Normalized to average pulse energy. Expressed as normalized root mean squared deviation (NRMSD).
Normalized to average pulse duration. Expressed as NRMSD.
M² specification valid for Gaussian beam.
Normalized astigmatism – difference of the waist positions, divided by Rayleigh length.
Normalized to Gaussian or Super-Gaussian fits. Expressed as normalized root mean squared deviation (NRMSD).
Expressed as NRMSD, full angle.
An optional external telescope can be ordered for a beam diameter of 11 – 28 mm.

Output


Model	TOPAS-PRIME	TOPAS-PRIME-PLUS
Tuning range	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)
Tuning range	1160 – 1600 nm (Signal) 1600 – 2600 nm (Idler)
Conversion efficiency at peak (Signal and Idler combined)	> 25%	> 25%
Conversion efficiency at peak (Signal and Idler combined)	> 25%
Pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration
Pulse duration	(0.7 – 1) × pump pulse duration
Time-bandwidth product	< 1	< 1
Time-bandwidth product	< 1
Polarization	Vertical (Signal) Horizontal (Idler)	Vertical (Signal) Horizontal (Idler)
Polarization	Vertical (Signal) Horizontal (Idler)
Pulse-to-pulse energy stability	< 2% RMS deviation ¹⁾ @ 1160 – 1550 nm	< 2% RMS deviation ¹⁾ @ 1160 – 1550 nm
Pulse-to-pulse energy stability	< 2% RMS deviation ¹⁾ @ 1160 – 1550 nm


Model	TOPAS-PRIME	TOPAS-PRIME-PLUS

Normalized to average pulse energy. Expressed as NRMSD.

VIS–UV–DUV extensions (189 – 1160 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage(s)
Control	Fully automated	Manual change of wavelength separators	Manual change of wavelength separators
Control	Fully automated	Manual change of wavelength separators
Maximum tuning range	240 – 1160 nm	189 – 1160 nm	240 – 1160 nm
Housing	Monolithic housing	Monolithic housing	No common housing
Housing	Monolithic housing		No common housing
Number of output ports	Single	Four ¹⁾	Four ¹⁾
Number of output ports	Single	Four ¹⁾
Available with	TOPAS‑PRIME	TOPAS‑PRIME ²⁾ and TOPAS‑PRIME‑PLUS ³⁾	TOPAS‑PRIME


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage(s)

Output ports are wavelength-dependent.
Special NIRUVIS‑DUV housing in case of DUV option extending down to 189 nm.
Special NIRUVIS-DUV-HE housing in case of DUV option extending down to 189 nm.

VIS extensions (475 – 1160 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage
SHI (800 – 1160 nm)
Tuning range	800 – 1160 nm	800 – 1160 nm	800 – 1160 nm
Tuning range	800 – 1160 nm
Conversion efficiency at peak	> 5% ¹⁾	> 5% ¹⁾	> 1.5%
Conversion efficiency at peak	> 5% ¹⁾		> 1.5%
Pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration
Pulse duration	(0.7 – 1) × pump pulse duration
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical
SHS (580 – 800 nm)
Tuning range	580 – 800 nm	580 – 800 nm	580 – 800 nm
Tuning range	580 – 800 nm
Conversion efficiency at peak	> 8% ²⁾	> 8% ²⁾	> 8% ²⁾
Conversion efficiency at peak	> 8% ²⁾
Pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration
Pulse duration	(0.7 – 1) × pump pulse duration
Polarization	Vertical	Horizontal ³⁾	Horizontal
SFI (533 – 600 nm)
Fresh pump option	Always	Optional	Optional
Fresh pump option	Always	Optional
Tuning range	533 – 600 nm	533 – 600 nm	533 – 600 nm
Tuning range	533 – 600 nm
Conversion efficiency at peak	> 5% ⁴⁾	> 5% ⁴⁾	> 5% ⁴⁾
Conversion efficiency at peak	> 5% ⁴⁾
Pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration
Pulse duration	(0.7 – 1) × pump pulse duration
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical
SFS (475 – 533 nm)
Fresh pump option	Always	Optional	Optional
Fresh pump option	Always	Optional
Tuning range	475 – 533 nm	475 – 533 nm	475 – 533 nm
Tuning range	475 – 533 nm
Conversion efficiency at peak	> 7% ⁵⁾	> 7% ⁵⁾	> 7% ⁵⁾
Conversion efficiency at peak	> 7% ⁵⁾
Pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration
Pulse duration	(0.8 – 1.2) × pump pulse duration
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise	Near-Gaussian with fresh pump option; not specified otherwise
Beam shape	Near-Gaussian with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise	< 1 with fresh pump option; not specified otherwise
Time-bandwidth	< 1 with fresh pump option; not specified otherwise
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage

> 2.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
> 6.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
Vertical for NIRUVIS‑DUV.
> 4% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
> 5.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.

UV extensions (240 – 480 nm)


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage
FHI (400 – 480 nm)
Tuning range	400 – 480 nm	400 – 480 nm	400 – 480 nm
Tuning range	400 – 480 nm
Conversion efficiency at peak	> 1.5% ¹⁾	> 1.5% ¹⁾	> 0.6%
Conversion efficiency at peak	> 1.5% ¹⁾		> 0.6%
Pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration	(0.7 – 1) × pump pulse duration
Pulse duration	(0.7 – 1) × pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal
FHS (290 – 400 nm)
Tuning range	290 – 400 nm	290 – 400 nm	290 – 400 nm
Tuning range	290 – 400 nm
Conversion efficiency at peak	> 1.5%	> 1.5%	> 1.5%
Conversion efficiency at peak	> 1.5%
Pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration
Pulse duration	(0.8 – 1.2) × pump pulse duration
Polarization	Horizontal	Vertical ²⁾	Vertical
SH of SFI (266 – 295 nm)
Tuning range	266 – 295 nm	266 – 295 nm	266 – 295 nm
Tuning range	266 – 295 nm
Conversion efficiency at peak	> 0.7% ³⁾	> 0.7% ³⁾	> 0.7% ³⁾
Conversion efficiency at peak	> 0.7% ³⁾
Pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration	(0.8 – 1.2) × pump pulse duration
Pulse duration	(0.8 – 1.2) × pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal
SH of SFS (240 – 266 nm)
Tuning range	240 – 266 nm	240 – 266 nm	240 – 266 nm
Tuning range	240 – 266 nm
Conversion efficiency at peak	> 0.8% ³⁾	> 0.8% ³⁾	> 0.8% ³⁾
Conversion efficiency at peak	> 0.8% ³⁾
Pulse duration	< 1.5 × pump pulse duration	< 1.5 × pump pulse duration	< 1.5 × pump pulse duration
Pulse duration	< 1.5 × pump pulse duration
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal


Extension	Automated NIRUVIS	Standard NIRUVIS	Separate mixer stage

> 0.6% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.
Horizontal for NIRUVIS‑DUV.
> 0.5% at peak with NIRUVIS‑DUV, due to additional pump pulse energy into the DUV option.

DUV extensions (189 – 240 nm)


Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE
Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE
	Pump + FHS	Pump + SH of SFI	Pump + SH of SFS
Tuning range	215 – 240 nm	200 – 215 nm	189 – 200 nm
Conversion efficiency at peak	> 0.3% ¹⁾	Not specified	Not specified
Conversion efficiency at peak	> 0.3% ¹⁾	Not specified
Polarization	Vertical	Vertical	Vertical
Polarization	Vertical


Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE	NIRUVIS‑DUV / NIRUVIS-DUV-HE
Extension	NIRUVIS‑DUV / NIRUVIS-DUV-HE

Assuming 15% of the pump pulse energy is allocated to the DUV channel and another 15% to the fresh pump channel.

DFG extensions (2600 – 20000 nm)


Extension	DFG1 / NDFG1W ¹⁾	NDFG1K ²⁾	DFG2 / NDFG2
Tuning range	2.6 – 11 μm	2.6 – 4.9 μm	4 – 20 μm
Conversion efficiency at peak	> 0.8%	> 1%	> 0.6%
Pulse duration	< 2 × pump pulse duration	< 2 × pump pulse duration	Not specified
Pulse duration	< 2 × pump pulse duration		Not specified
Polarization	Horizontal	Horizontal	Horizontal
Polarization	Horizontal


Extension	DFG1 / NDFG1W ¹⁾	NDFG1K ²⁾	DFG2 / NDFG2

Maximum pump repetition rate – 1 kHz; crystal lifetime of 1000 – 2000 h.
Not available in the collinear configuration.

Performance

Typical spectra

Set of typical TOPAS-PRIME signal spectra — TOPAS-PRIME typical set of signal spectra.

Set of typical TOPAS-PRIME SHS spectra — TOPAS-PRIME typical set of SHS spectra.

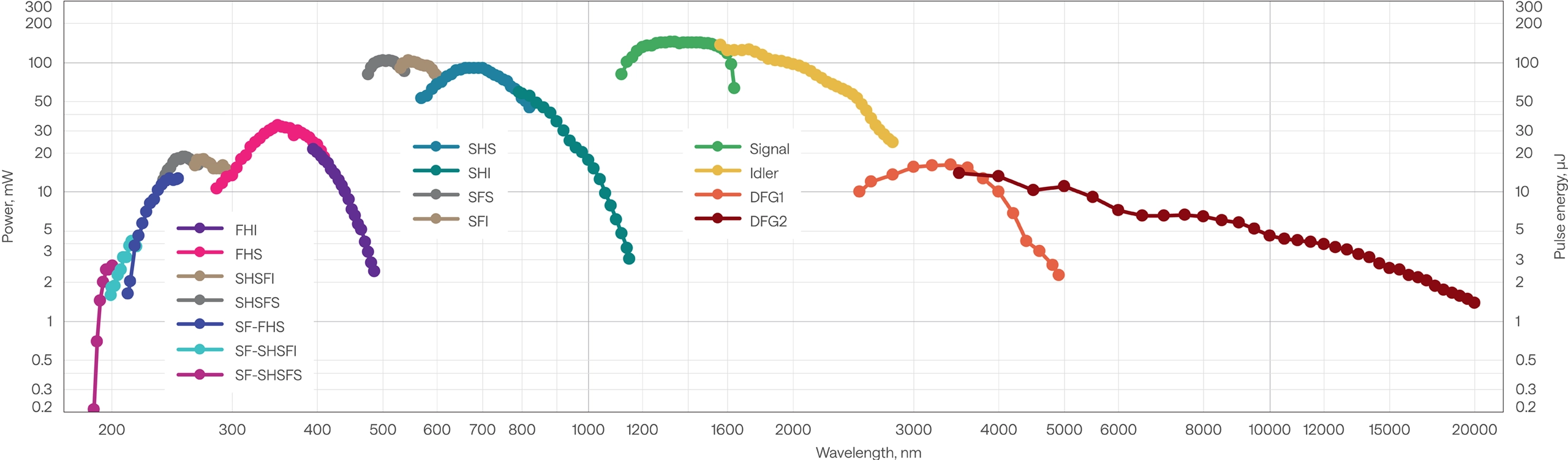

Tuning curves

CEP stabilization of Idler

The Idler of TOPAS (1600 – 2600 nm) is passively carrier-envelope phase (CEP) locked due to the three-wave interaction process. However, a slow CEP drift may occur as a result of pump beam pointing fluctuations or changes in environmental conditions. This drift can be compensated by employing an f-2f interferometer combined with a feedback loop, which controls the temporal delay between seed and pump in the power amplification stage of TOPAS-PRIME and TOPAS-PRIME-HE.
