Modular-Design Femtosecond Lasers for Industry and Science

PHAROS-PH2 femtosecond laser with integrated harmonic generator

Tunable pulse duration, 100 fs – 20 ps
Maximum pulse energy of up to 4 mJ
Down to < 100 fs right at the output
Pulse-on-demand and BiBurst for pulse control
Up to 5th harmonic or tunable extensions
CEP stabilization or repetition rate locking

Download datasheet

PHAROS femtosecond lasers combine multi‑millijoule pulse energy and high average power, featuring a robust optomechanical design optimized for both scientific and industrial applications. The thermally stabilized and sealed design ensures seamless integration into various optical setups and machining workstations, delivering exceptional laser lifetime and stable operation across varying environments.

PHAROS provides unparalleled versatility, covering applications that would typically require multiple laser systems. Its key tunable parameters include pulse duration (100 fs – 20 ps), repetition rate (single-shot – 1 MHz), pulse energy (up to 4 mJ), and average power (up to 20 W).

The built-in pulse picker enables a pulse-on-demand mode, further enhancing operational flexibility. Additionally, the versatility of PHAROS femtosecond lasers can be further extended by a variety of options, including carrier-envelope phase (CEP) stabilization, repetition rate locking to an external source, automated harmonic modules, and optical parametric amplifiers.

Specifications


Model	PH2-10W	PH2-20W-SP	PH2-20W-SP	PH2-20W-SP	PH2-4mJ	PH2-UP	PH2-UP
Model	PH2-10W	PH2-20W-SP			PH2-4mJ	PH2-UP
Output characteristics
Center wavelength ¹⁾	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm
Center wavelength ¹⁾	1030 ± 10 nm
Maximum output power	10 W	20 W	20 W	20 W	20 W	20 W	20 W
Maximum output power	10 W	20 W

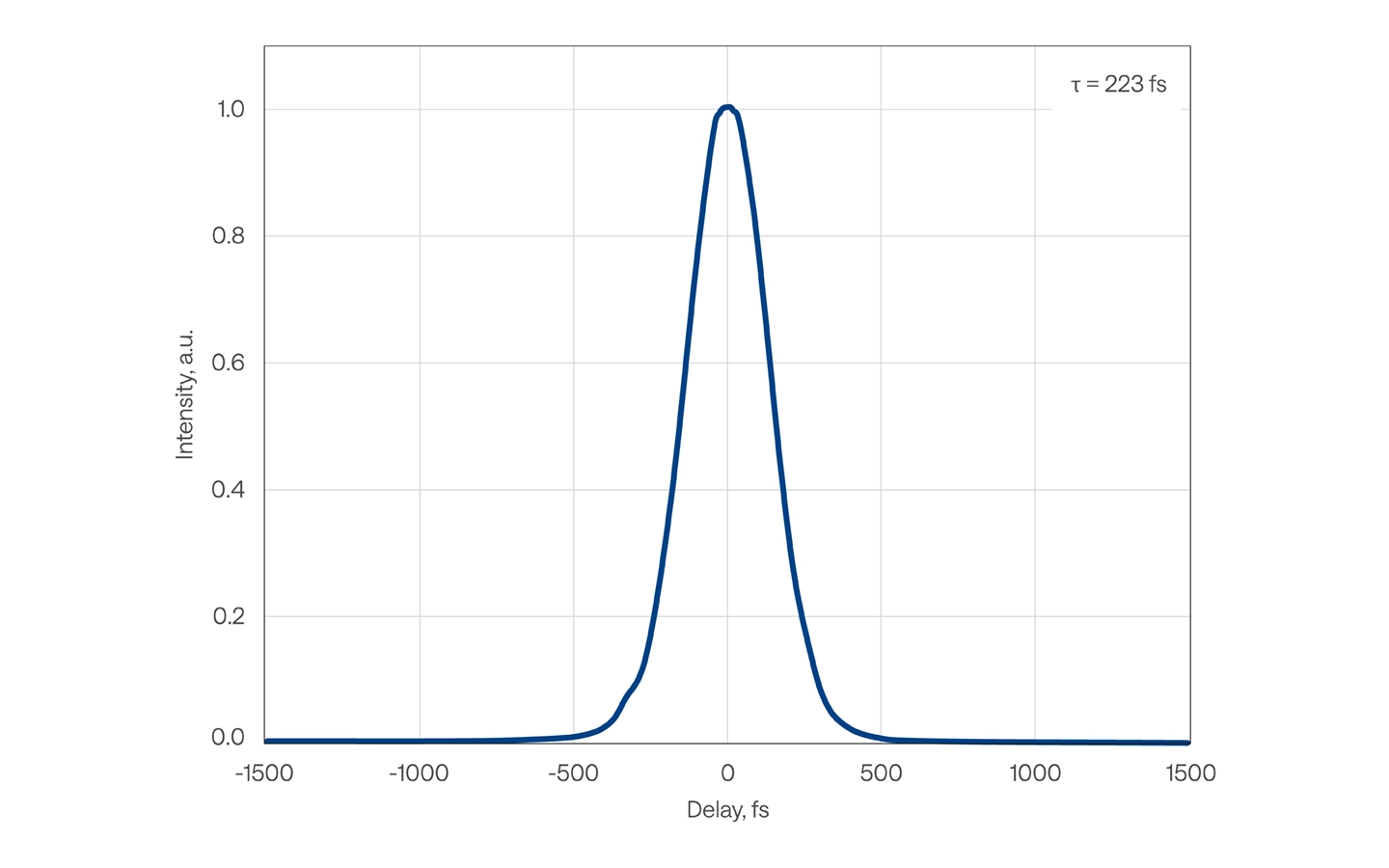

Pulse duration ²⁾	< 290 fs	< 190 fs	< 190 fs	< 190 fs	< 450 fs ³⁾	< 100 fs	< 100 fs
Pulse duration ²⁾	< 290 fs	< 190 fs			< 450 fs ³⁾	< 100 fs
Pulse duration tuning range	290 fs – 10 ps (20 ps on request)	190 fs – 10 ps (20 ps on request)	190 fs – 10 ps (20 ps on request)	190 fs – 10 ps (20 ps on request)	450 fs – 10 ps	100 fs – 10 ps	100 fs – 10 ps
Pulse duration tuning range	290 fs – 10 ps (20 ps on request)	190 fs – 10 ps (20 ps on request)			450 fs – 10 ps	100 fs – 10 ps
Maximum pulse energy	0.2 mJ	0.4 mJ	1 mJ	2 mJ	4 mJ	0.4 mJ	1 mJ
Repetition rate	Single-shot – 1 MHz	Single-shot – 1 MHz	Single-shot – 1 MHz	Single-shot – 1 MHz	Single-shot – 1 MHz	Single-shot – 1 MHz	Single-shot – 1 MHz
Repetition rate	Single-shot – 1 MHz
Pulse selection	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division	Single-shot, pulse-on-demand, any fundamental repetition rate division
Pulse selection	Single-shot, pulse-on-demand, any fundamental repetition rate division
Polarization	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal
Polarization	Linear, horizontal

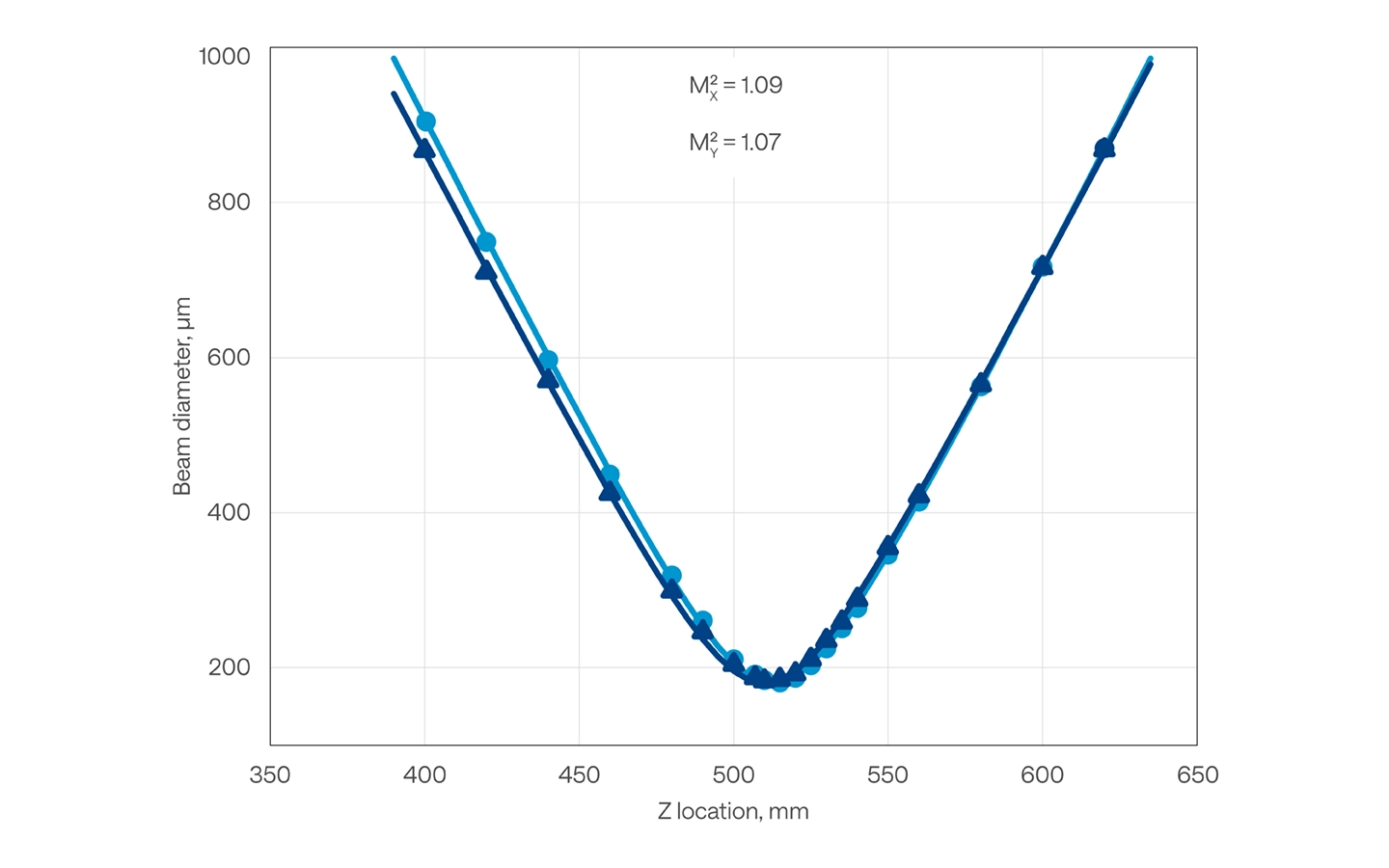

Beam quality, M²	< 1.2	< 1.2	< 1.3	< 1.3	< 1.3	< 1.2	< 1.2
Beam quality, M²	< 1.2		< 1.3			< 1.2
Beam diameter ⁴⁾	3.3 ± 0.5 mm	4.0 ± 0.5 mm	4.5 ± 0.5 mm	6.8 ± 0.7 mm	6.8 ± 0.7 mm	4.5 ± 0.5 mm	6.0 ± 0.5 mm
Beam diameter ⁴⁾	3.3 ± 0.5 mm	4.0 ± 0.5 mm	4.5 ± 0.5 mm	6.8 ± 0.7 mm		4.5 ± 0.5 mm	6.0 ± 0.5 mm
Beam pointing stability	< 20 µrad/°C	< 20 µrad/°C	< 20 µrad/°C	< 20 µrad/°C	< 20 µrad/°C	< 20 µrad/°C	< 20 µrad/°C
Beam pointing stability	< 20 µrad/°C
Pre-pulse contrast	< 1 : 1000	< 1 : 1000	< 1 : 1000	< 1 : 1000	< 1 : 1000	< 1 : 1000	< 1 : 1000
Pre-pulse contrast	< 1 : 1000
Post-pulse contrast	< 1 : 200	< 1 : 200	< 1 : 200	< 1 : 200	< 1 : 200	< 1 : 200	< 1 : 200
Post-pulse contrast	< 1 : 200
Pulse-to-pulse energy stability, 24 h ⁵⁾	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%
Pulse-to-pulse energy stability, 24 h ⁵⁾	< 0.5%
Long-term power stability, 100 h ⁵⁾	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%
Long-term power stability, 100 h ⁵⁾	< 0.5%
Main options
Oscillator output ⁶⁾	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz
Oscillator output ⁶⁾	1 – 7 W, 50 – 250 fs, ≈ 1035 nm, ≈ 76 MHz
Harmonic generator ⁷⁾	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm	515 nm, 343 nm, 257 nm, or 206 nm
Harmonic generator ⁷⁾	515 nm, 343 nm, 257 nm, or 206 nm
Optical parametric amplifier ⁸⁾	320 – 10000 nm	320 – 10000 nm	320 – 10000 nm	320 – 10000 nm	320 – 10000 nm	320 – 10000 nm	320 – 10000 nm
Optical parametric amplifier ⁸⁾	320 – 10000 nm
BiBurst mode	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability	Tunable GHz and MHz burst with burst-in-burst capability
BiBurst mode	Tunable GHz and MHz burst with burst-in-burst capability
CEP stabilization	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS	Check CEP stabilization for PHAROS
CEP stabilization	Check CEP stabilization for PHAROS
Repetition rate locking	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS	Check Repetition rate locking for PHAROS
Repetition rate locking	Check Repetition rate locking for PHAROS
Physical dimensions
Laser head (L × W × H) ⁹⁾	730 × 419 × 230 mm	730 × 419 × 230 mm	730 × 419 × 230 mm	730 × 419 × 230 mm	827 × 492 × 250 mm	770 × 419 × 230 mm	770 × 419 × 230 mm
Laser head (L × W × H) ⁹⁾	730 × 419 × 230 mm				827 × 492 × 250 mm	770 × 419 × 230 mm
Chiller (L × W × H)	590 × 484 × 267 mm	590 × 484 × 267 mm	590 × 484 × 267 mm	590 × 484 × 267 mm	590 × 484 × 267 mm	590 × 484 × 267 mm	590 × 484 × 267 mm
Chiller (L × W × H)	590 × 484 × 267 mm
24 V DC power supply (L × W × H) ⁹⁾	280 × 144 × 49 mm	280 × 144 × 49 mm	280 × 144 × 49 mm	280 × 144 × 49 mm	280 × 144 × 49 mm	280 × 144 × 49 mm	280 × 144 × 49 mm
24 V DC power supply (L × W × H) ⁹⁾	280 × 144 × 49 mm
Environmental & utility requirements
Operating temperature	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)
Operating temperature	15 – 30 ºC (air conditioning recommended)
Relative humidity	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)
Relative humidity	< 80% (non-condensing)
Laser	Laser	Laser	Laser	Laser	Laser	Laser	Laser
Laser
Electrical requirements	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz
Electrical requirements	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz
Rated power	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W
Rated power	1000 W
Power consumption	600 W	600 W	600 W	600 W	600 W	600 W	600 W
Power consumption	600 W
Chiller	Chiller	Chiller	Chiller	Chiller	Chiller	Chiller	Chiller
Chiller
Rated power	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz	100 – 230 V AC; 50 – 60 Hz
Rated power	100 – 230 V AC; 50 – 60 Hz
Power consumption	1400 W	1400 W	1400 W	1400 W	1400 W	1400 W	1400 W
Power consumption	1400 W
Rated power	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W	1000 W
Rated power	1000 W


Model	PH2-10W	PH2-20W-SP	PH2-20W-SP	PH2-20W-SP	PH2-4mJ	PH2-UP	PH2-UP
Model	PH2-10W	PH2-20W-SP			PH2-4mJ	PH2-UP

Precise wavelengths for specific models are available upon request.
Assuming Gaussian pulse shape.
Pulse duration can be reduced to < 250 fs if pulse peak intensity of > 50 GW/cm² is tolerated by the customer setup.
FW 1/e², measured at laser output, using maximum pulse energy.
Under stable environmental conditions. Expressed as normalized root mean squared deviation (NRMSD).
Available simultaneously. Contact sales@lightcon.com for more details or customized solutions.
Integrated. For an external harmonic generator, refer to HIRO.
Integrated. For more options and OPAs for -4mJ and -UP models, refer to ORPHEUS OPAs.
Dimensions depend on laser configuration and integrated options.
