ORPHEUS-N Non-Collinear OPA – LIGHT CONVERSION

Non-Collinear Optical Parametric Amplifier

Pulse duration down to < 30 fs
Integrated prism compressor
Adjustable spectral bandwidth and pulse duration
Wavelength feedback with an internal spectrometer

Download datasheet

ORPHEUS-N is a non-collinear optical parametric amplifier (OPA), also know as NOPA. Depending on the model, ORPHEUS-N includes an integrated second- or third-harmonic generator, producing a 515 nm or 343 nm pump, respectively:

ORPHEUS-N-2H: A second-harmonic pump delivers <30 fs pulses in the 700–850 nm range.
ORPHEUS-N-3H: A third-harmonic pump delivers <30 fs pulses in the 540–660 nm range.

Both models feature a built-in prism-based pulse compressor. Additionally, an optional second-harmonic generator is available, extending the tuning range into the ultraviolet (UV) spectral region.

A single CARBIDE or PHAROS femtosecond laser can pump multiple NOPAs, enabling independent wavelength tuning for pump and/or probe beams for advanced experiments.

For a broader tunability range, refer to ORPHEUS-F broad-bandwidth hybrid OPA. For ultrashort pulses tunable around 500 nm, refer to ORPHEUS‑VIS.

Specifications


Model	ORPHEUS‑N‑2H	ORPHEUS‑N‑3H
Main output
Tuning range	650 – 900 nm (Signal)	520 – 900 nm (Signal)
Maximum pump power	8 W	8 W
Maximum pump power	8 W
Pump pulse energy	10 – 200 µJ	12 – 200 µJ
Conversion efficiency	> 7% @ 700 nm > 5% @ 800 nm	> 1.3% @ 580 nm > 0.7% @ 700 nm > 0.3% @ 800 nm
Integrated 2H / 3H generation efficiency ¹⁾	> 35% (515 nm)	> 25% (343 nm)
Pulse duration after compressor	< 30 fs @ 700 – 850 nm	< 30 fs @ 540 – 660 nm < 70 fs @ 660 – 800 nm
Long-term power stability, 8 h ²⁾	< 2% @ 800 nm	< 2% @ 580 nm
Pulse-to-pulse energy stability, 1 min ²⁾	< 2% @ 800 nm	< 2% @ 580 nm
Wavelength extension
Tuning range (SHS)	325 – 450 nm	260 – 450 nm
Conversion efficiency	> 0.7 % @ 350 nm	> 0.15 % @ 290 nm
Pump laser requirements
Configuration	CARBIDE or PHAROS	CARBIDE or PHAROS
Configuration	CARBIDE or PHAROS
Center wavelength	1030 ± 10 nm	1030 ± 10 nm
Center wavelength	1030 ± 10 nm
Maximum pump power	8 W	8 W
Maximum pump power	8 W
Repetition rate	Single-shot – 800 kHz	Single-shot – 600 kHz
Pump pulse energy	10 – 200 μJ	12 – 200 μJ
Pump pulse duration ³⁾	180 – 500 fs	180 – 500 fs
Pump pulse duration ³⁾	180 – 500 fs
Environmental & utility requirements
Operating temperature ⁴⁾	19 – 25 ºC (air conditioning recommended)	19 – 25 ºC (air conditioning recommended)
Operating temperature ⁴⁾	19 – 25 ºC (air conditioning recommended)
Relative humidity ⁴⁾	20 – 70% (non-condensing)	20 – 70% (non-condensing)
Relative humidity ⁴⁾	20 – 70% (non-condensing)
Electrical requirements	100 – 240 V AC, 1.4 A; 50 – 60 Hz	100 – 240 V AC, 1.4 A; 50 – 60 Hz
Electrical requirements	100 – 240 V AC, 1.4 A; 50 – 60 Hz
Rated power	120 W	120 W
Rated power	120 W
Power consumption	Standby: 10 W, Max during wavelength tuning: 100 W	Standby: 10 W, Max during wavelength tuning: 100 W
Power consumption	Standby: 10 W, Max during wavelength tuning: 100 W
Purging requirements	Nitrogen purge – optional	Nitrogen purge – required, 1 – 3 liters per minute


Model	ORPHEUS‑N‑2H	ORPHEUS‑N‑3H

Not simultaneous to NOPA output.
Expressed as normalized root mean squared deviation (NRMSD).
FWHM, assuming Gaussian pulse shape.
Specifications are guaranteed for a maximum temperature variation of ± 1^oC and humidity variation of ± 10%.

Performance

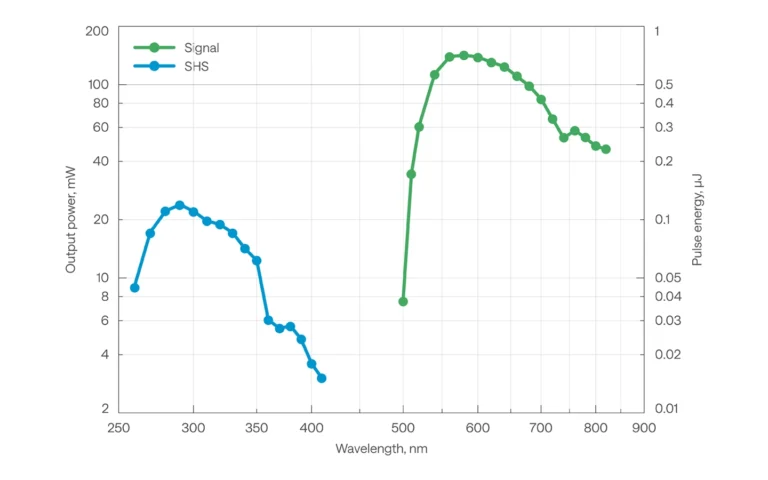

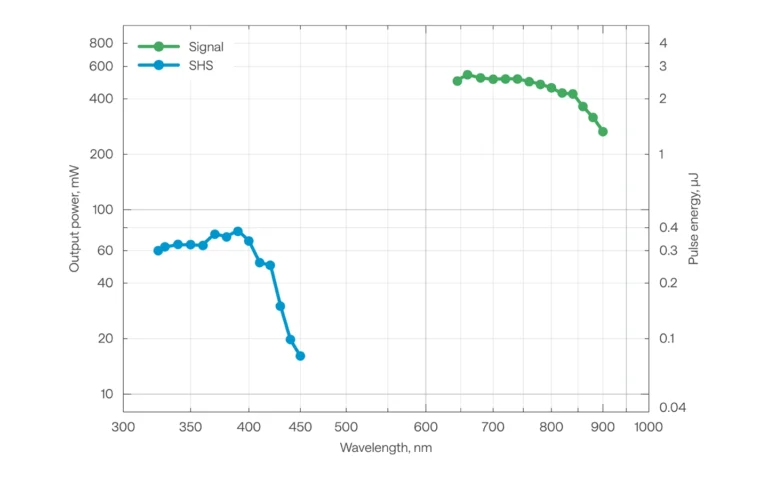

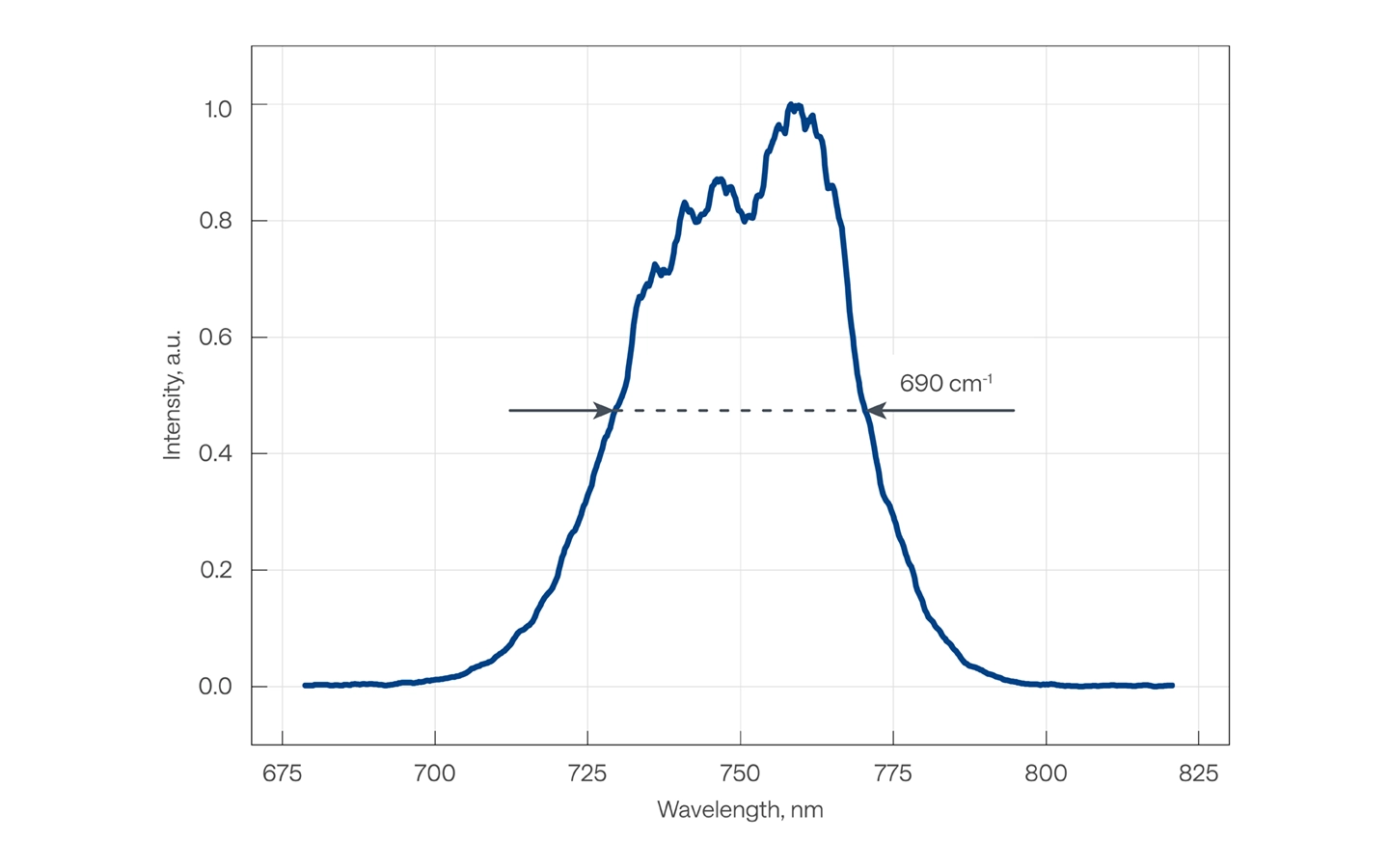

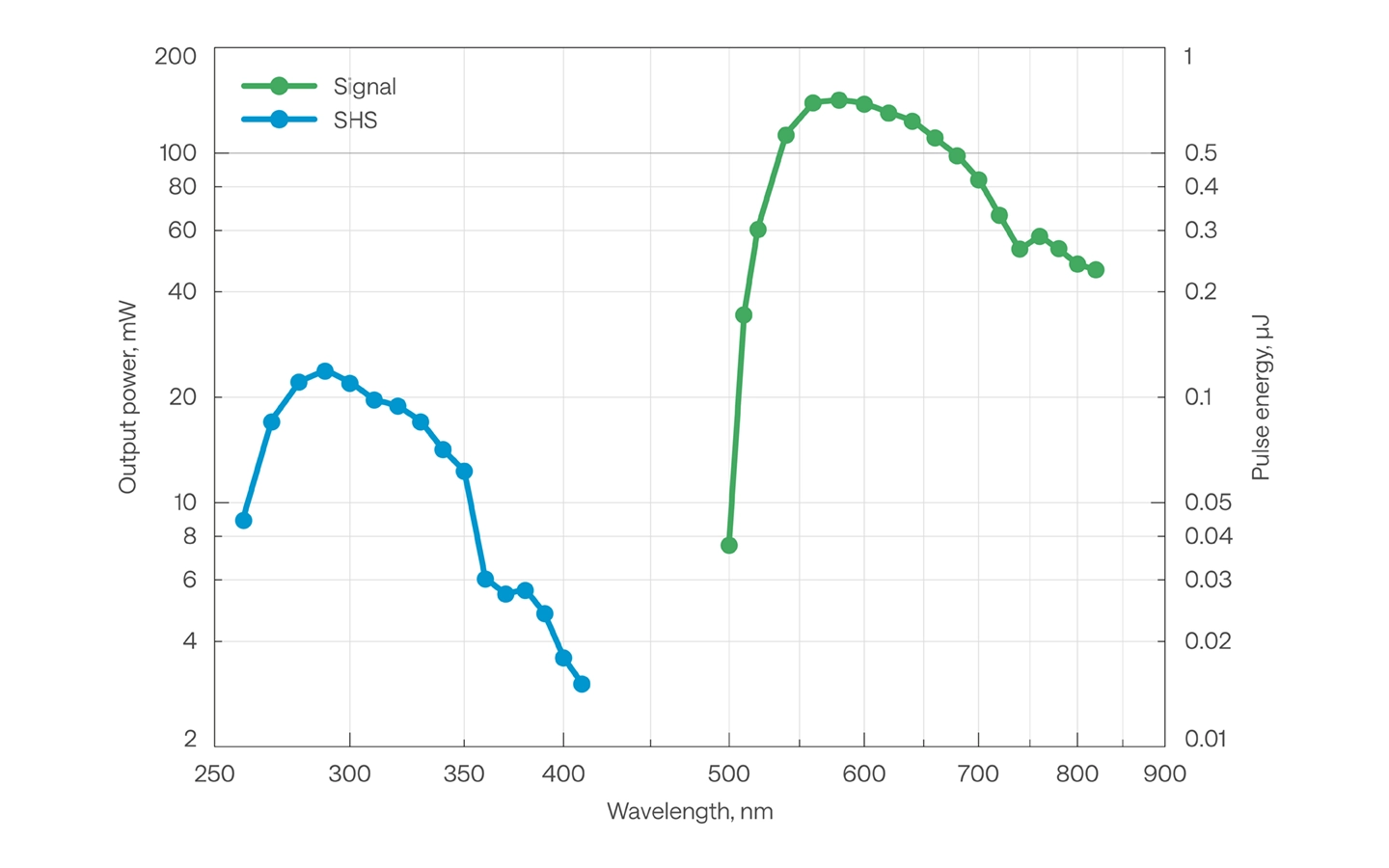

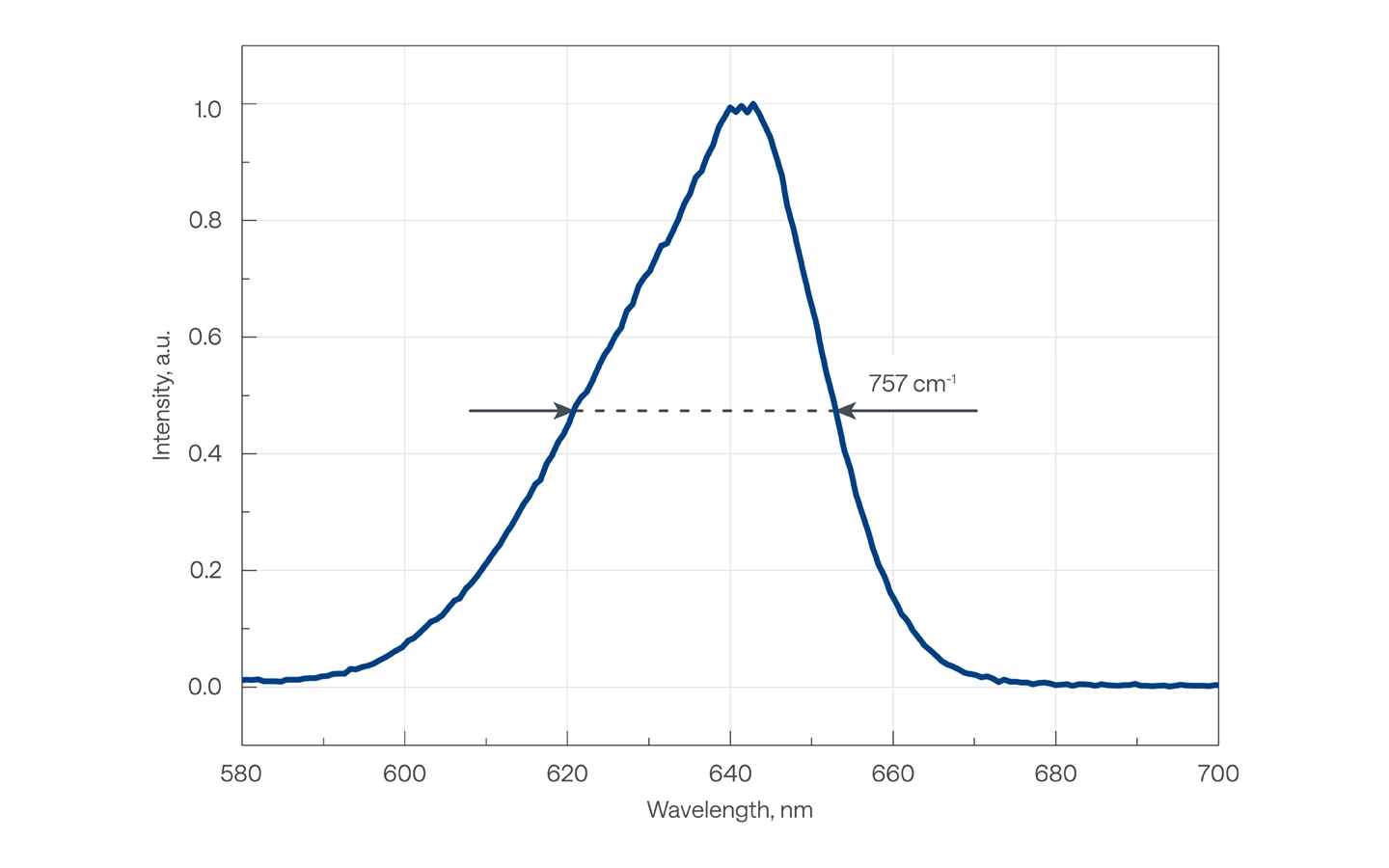

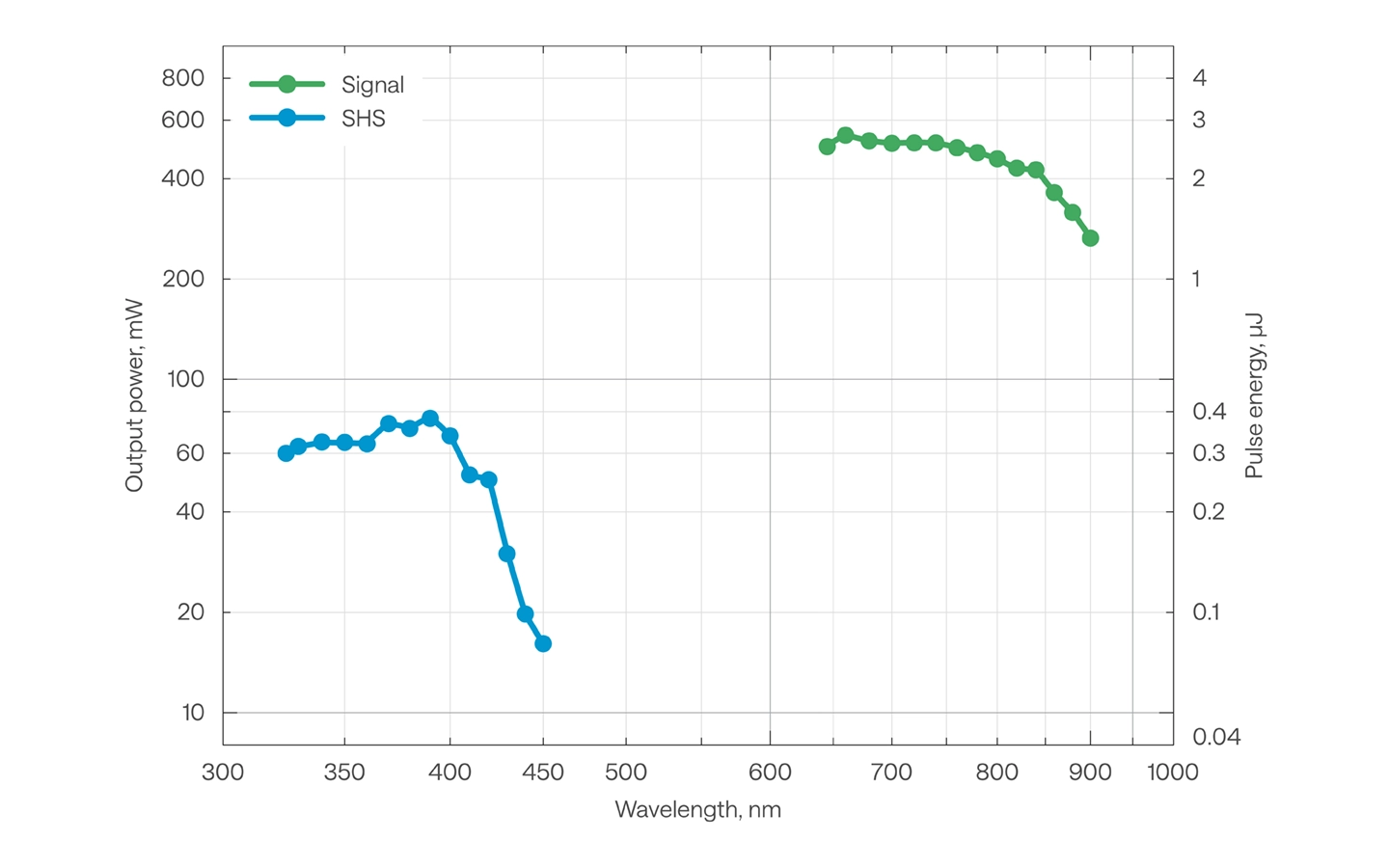

ORPHEUS‑N‑2H
