FLINT High-Repetition-Rate Lasers

High-Repetition-Rate Lasers

10, 40, or 80 MHz repetition rate
Down to 50 fs pulse duration
High-power models, up to 20 W
High-energy models, up to 0.5 µJ
CEP stabilization or repetition rate locking

Download datasheet

FLINT high-repetition-rate femtosecond oscillators deliver state-of-the-art output parameters. Built on the proven industrial-grade design of the CARBIDE and PHAROS laser series, FLINT oscillators ensure excellent performance and long-term stability.

The latest model, FLINT-FL2, offers output power of up to 20 W, pulse energy of up to 0.5 µJ, and pulse duration down to 50 fs at repetition rates of 10, 40, or 80 MHz.
FLINT-FL1 oscillators support carrier-envelope phase (CEP) stabilization or repetition rate locking (RRL) to an external source, with selectable repetition rates ranging from 60 to 100 MHz.

To meet the demands of both industrial and scientific applications, FLINT models are available in standard and short-pulse (SP) configurations. Additionally, an automated and fully integrated harmonic generator provides second harmonic (515 nm) output, while the third (343 nm) and fourth (257 nm) harmonics are obtainable using the HIRO external harmonic generator.

Specifications


Model	FL1	FL1	FL1	FL2-SP	FL2	FL2	FL2
Model	FL1			FL2-SP	FL2
Output characteristics
Key feature	CEP	RRL	Compact	Short pulse	High power and high energy	High power and high energy	High power and high energy
Key feature	CEP	RRL	Compact	Short pulse	High power and high energy
Pulse duration	< 100 fs	< 100 fs	< 120 fs	< 50 fs	< 120 fs	< 170 fs ¹⁾	< 170 fs ¹⁾
Pulse duration	< 100 fs		< 120 fs	< 50 fs	< 120 fs	< 170 fs ¹⁾
Repetition rate	60 – 100 MHz ²⁾	60 – 100 MHz ²⁾	60 – 100 MHz ²⁾	10 MHz	10 MHz	40 MHz	80 MHz
Repetition rate	60 – 100 MHz ²⁾			10 MHz		40 MHz	80 MHz
Maximum output power	0.5 W	1 W	8 W	4 W	5 W	20 W	20 W
Maximum output power	0.5 W	1 W	8 W	4 W	5 W	20 W
Maximum pulse energy	6 nJ ³⁾	12.5 nJ ³⁾	100 nJ ³⁾	0.4 µJ	0.5 µJ	0.5 µJ	0.25 µJ
Maximum pulse energy	6 nJ ³⁾	12.5 nJ ³⁾	100 nJ ³⁾	0.4 µJ	0.5 µJ		0.25 µJ
Center wavelength	1035 ± 10 nm	1035 ± 10 nm	1035 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm	1030 ± 10 nm
Center wavelength	1035 ± 10 nm			1030 ± 10 nm
Polarization	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal	Linear, horizontal
Polarization	Linear, horizontal
Beam quality, M²	< 1.2	< 1.2	< 1.2	< 1.3	< 1.2	< 1.2	< 1.2
Beam quality, M²	< 1.2			< 1.3	< 1.2
Beam pointing stability	< 10 µrad/°C	< 10 µrad/°C	< 10 µrad/°C	< 10 µrad/°C	< 10 µrad/°C	< 10 µrad/°C	< 10 µrad/°C
Beam pointing stability	< 10 µrad/°C
Long-term power stability, 100 h ⁴⁾	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%	< 0.5%
Long-term power stability, 100 h ⁴⁾	< 0.5%
Integrated 2H generator ⁵⁾	n/a	n/a	n/a	n/a	Optional; conversion efficiency > 30% ⁶⁾	Optional; conversion efficiency > 30% ⁶⁾	Optional; conversion efficiency > 30% ⁶⁾
Integrated 2H generator ⁵⁾	n/a				Optional; conversion efficiency > 30% ⁶⁾
External 2H, 3H, or 4H generator ⁵⁾	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT	Optional, refer to HIRO for FLINT
External 2H, 3H, or 4H generator ⁵⁾	Optional, refer to HIRO for FLINT
Integrated attenuator	n/a	n/a	n/a	Included	Included	Included	Included
Integrated attenuator	n/a			Included
Physical dimensions
Laser head (L × W × H)	448 × 206 × 115 mm	448 × 206 × 115 mm	448 × 206 × 115 mm	543 × 322 × 146 mm	543 × 322 × 146 mm	543 × 322 × 146 mm	543 × 322 × 146 mm
Laser head (L × W × H)	448 × 206 × 115 mm			543 × 322 × 146 mm
Power supply and chiller rack (L × W × H)	642 × 553 × 540 mm	642 × 553 × 540 mm	642 × 553 × 540 mm	642 × 553 × 673 mm	642 × 553 × 673 mm	642 × 553 × 673 mm	642 × 553 × 673 mm
Power supply and chiller rack (L × W × H)	642 × 553 × 540 mm			642 × 553 × 673 mm
Chiller	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com	Different options available. Contact sales@lightcon.com
Chiller	Different options available. Contact sales@lightcon.com
Environmental & utility requirements
Operating temperature	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)	15 – 30 ºC (air conditioning recommended)
Operating temperature	15 – 30 ºC (air conditioning recommended)
Relative humidity	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)	< 80% (non-condensing)
Relative humidity	< 80% (non-condensing)
Electrical requirements	100 V AC, 7 A – 240 V AC, 3 A; 50 – 60 Hz	100 V AC, 7 A – 240 V AC, 3 A; 50 – 60 Hz	100 V AC, 7 A – 240 V AC, 3 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz	100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz
Electrical requirements	100 V AC, 7 A – 240 V AC, 3 A; 50 – 60 Hz			100 V AC, 12 A – 240 V AC, 5 A; 50 – 60 Hz
Laser	Laser	Laser	Laser	Laser	Laser	Laser	Laser
Laser
Rated power	200 W	200 W	200 W	200 W	200 W	200 W	200 W
Rated power	200 W
Power consumption	100 W	100 W	100 W	150 W	150 W	150 W	150 W
Power consumption	100 W			150 W
Chiller	Chiller	Chiller	Chiller	Chiller	Chiller	Chiller	Chiller
Chiller
Power consumption	600 W	600 W	600 W	1000 W	1000 W	1000 W	1000 W
Power consumption	600 W			1000 W


Model	FL1	FL1	FL1	FL2-SP	FL2	FL2	FL2
Model	FL1			FL2-SP	FL2

For 20 W output power. Lower power models: 8 W and 12 W, are available upon request.
The standard repetition rate is 80 MHz; a custom repetition rate can be factory preset from the given range.
Depends on the repetition rate. Values are given for 80 MHz.
With enabled power-lock, under stable environmental conditions. Expressed as normalized root mean squared deviation (NRMSD).
For external 2H or even 3H and 4H generation, refer to HIRO for FLINT.
Conversion efficiency specified at maximum power.

Performance

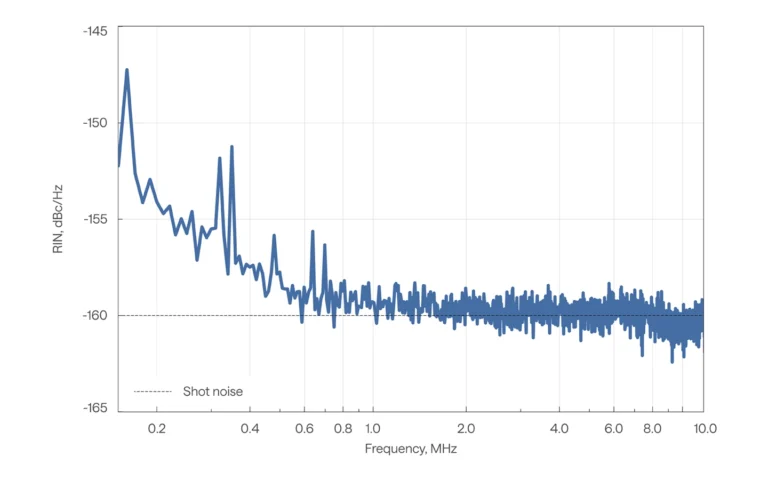

General performance
