Unibody-Design Femtosecond Lasers for Industry and Science CARBIDE Lasers

  • Tunable pulse duration, 190 fs – 20 ps
  • Maximum output of 80 W and 2 mJ
  • Single-shot – 2 MHz repetition rate
  • Pulse-on-demand and BiBurst for pulse control
  • Up to 5th harmonic or tunable extensions
  • Air-cooled model
  • Compact industrial-grade design
CARBIDE-CB3 femtosecond laser
Overview Specifications Performance Drawings Options Publications Downloads
Features

Features

  • Tunable pulse duration, 190 fs – 20 ps
  • Maximum output of 80 W and 2 mJ
  • Single-shot – 2 MHz repetition rate
  • Pulse-on-demand and BiBurst for pulse control
  • Up to 5th harmonic or tunable extensions
  • Air-cooled model
  • Compact industrial-grade design
Description

CARBIDE is a series of femtosecond lasers combining high average power and excellent power stability. CARBIDE features market-leading output parameters without compromises to beam quality and stability. A compact and robust optomechanical CARBIDE design allows a variety of applications in top-class research centers, as well as display, automotive, LED, medical, and other industries. The reliability of CARBIDE has been proven by hundreds of systems operating 24/7 in the industrial environment.

The tunability of CARBIDE lasers enables our customers to discover the most efficient manufacturing processes. Tunable parameters include pulse duration (190 fs – 20 ps), repetition rate (single-shot – 2 MHz), pulse energy (up to 2 mJ), and average power (up to 80 W). A pulse-on-demand mode is available using the built-in pulse picker. The CARBIDE lasers can be equipped with industrial-grade modules, including but not limited to high-power harmonic generators.

Video presentation
Output Characteristics
Model CB3-20W CB3-40W CB3-80W CB5 CB5-SP
Cooling method Water-cooled Air-cooled 1)
Maximum output power 20 W 40 W 80 W 6 W 5 W
Pulse duration 2) < 250 fs < 350 fs < 290 fs < 190 fs
Pulse duration tuning range 250 fs – 10 ps 350 fs – 10 ps 290 fs – 20 ps 190 fs – 20 ps
Maximum pulse energy 0.4 mJ 0.8 mJ 2 mJ 100 µJ 83 µJ 100 µJ
Repetition rate Single-shot – 1 MHz Single-shot – 1 MHz
(2 MHz on request)		 Single-shot – 2 MHz Single-shot – 1 MHz
Pulse selection Single-shot, pulse-on-demand, any fundamental repetition rate division
Center wavelength 3) 1030 ± 10 nm
Polarization Linear, vertical; 1 : 1000
Beam quality, M2 < 1.2
Beam diameter 4) 3.9 ± 0.4 mm 4.2 ± 0.4 mm 5.1 ± 0.7 mm 2.1 ± 0.4 mm
Beam pointing stability < 20 µrad/°C
Pulse picker FEC 5) Included Included 6) Included
Pulse picker leakage < 0.5 % < 2 % < 0.1 % < 2 %
Pulse-to-pulse energy stability 7) RMS deviation 8) < 0.5% over 24 h
Long-term power stability 7) RMS deviation 8) < 0.5% over 100 h
  1. Water-cooled version available on request.
  2. Assuming Gaussian pulse shape.
  3. Precise center wavelength for specific models available upon request.
  4. FW 1/e2, using maximum pulse energy.
  5. Provides fast energy control; external analog control input available. Response time – next available RA pulse.
  6. Enhanced contrast AOM. Provides fast amplitude control of output pulse train.
  7. Under stable environmental conditions.
  8. Normalized to average pulse energy, NRMSD.
Main options
Model CB3-20W CB3-40W CB3-80W CB5 CB5-SP
Maximum pulse energy 0.4 mJ 0.8 mJ 2 mJ 100 µJ 83 µJ 100 µJ
Oscillator output < 0.5 W, 120 – 250 fs, 1030 ± 10 nm, ≈ 65 MHz 1) n/a
Harmonics generator 2) 515 nm, 343 nm, 257 nm, or 206 nm
Optical parametric amplifier 2) 3) 320 – 10 000 nm
BiBurst option 2) Tunable GHz and MHz burst with burst-in-burst capability, optional n/a
  1. Available simultaneously, requires scientific interface. Contact sales@lightcon.com for details or customized solutions.
  2. Integrated. For external harmonic generator, refer to HIRO.
  3. Integrated. For external OPA refer to ORPHEUS OPAs.
PHYSICAL DIMENSIONS
Model CB3-20W CB3-40W CB3-80W CB5 CB5-SP
Laser head (L × W × H) 632 × 305 × 173 mm 631 × 324 × 167 mm
Chiller (L × W × H) 680 × 484 × 307 mm Not required
24 V DC power supply (L × W × H) 280 × 144 × 49 mm 320 × 200 × 75 mm 220 × 95 × 46 mm
Environmental & Utility Requirements
Model CB3-20W CB3-40W CB3-80W CB5 CB5-SP
Operating temperature 15 – 30 °C (59 – 86 °F) 17 – 27 °C (62 – 80 °F)
Relative humidity < 80% (non-condensing)
Electrical requirements 100 V AC, 7 A – 240 V AC, 3 A;
50 – 60 Hz		 100 V AC, 12 A – 240 V AC, 5 A;
50 – 60 Hz		 100 V AC, 3 A – 240 V AC, 1.3 A;
50 – 60 Hz
Rated power 600 W 1000 W 300 W
Power consumption 500 W 900 W 150 W
Electrical requirements (chiller) 100 – 230 V AC; 50 – 60 Hz 200 – 230 V AC; 50 – 60 Hz Not required
Rated power (chiller) 1400 W 2000 W
Power consumption (chiller) 1000 W 1300 W
CARBIDE-CB3 performance
Typical pulse duration of CARBIDE laser
Typical pulse duration of CARBIDE laser

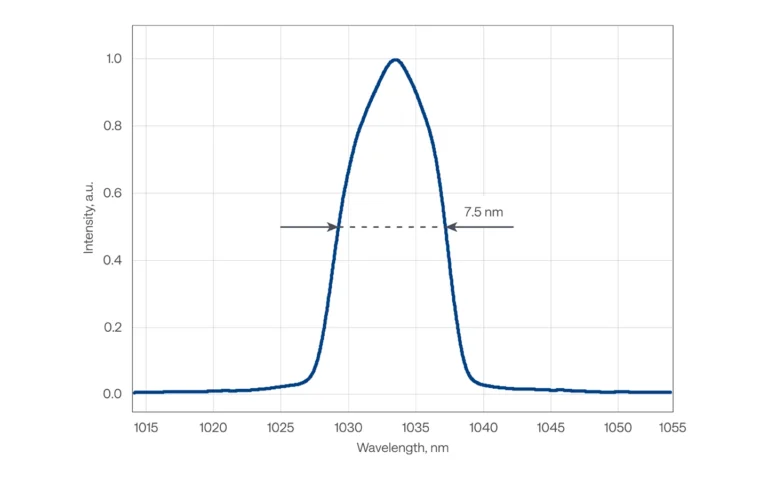

Typical spectrum of CARBIDE laser
Typical spectrum of CARBIDE laser
Long-term power stability of CARBIDE-CB3
Long-term power stability of CARBIDE-CB3
Typical beam profile of CARBIDE-CB3
Typical beam profile of CARBIDE-CB3
CARBIDE-CB3 output power and beam direction with power lock enabled, under varying environmental conditions
CARBIDE-CB3 output power and beam direction with power lock enabled, under varying environmental conditions
Typical pulse-to-pulse energy stability of CARBIDE-CB3 lasers
Typical pulse-to-pulse energy stability of CARBIDE-CB3 lasers
Pulse energy vs repetition rate of CARBIDE-CB3-80W with HG
Pulse energy vs repetition rate of CARBIDE-CB3-80W with HG
CARBIDE-CB5 performance
Typical pulse duration of CARBIDE laser
Typical pulse duration of CARBIDE laser
Typical spectrum of CARBIDE laser
Typical spectrum of CARBIDE laser
Long-term power stability of CARBIDE-CB5
Long-term power stability of CARBIDE-CB5
Typical 1H beam profile of CARBIDE-CB5
Typical 1H beam profile of CARBIDE-CB5 (100 kHz, 6 W)
Typical 2H beam profile of CARBIDE-CB5
Typical 2H beam profile of CARBIDE-CB5 (100 kHz, 3.4 W)
Typical 3H beam profile of CARBIDE-CB5
Typical 3H beam profile of CARBIDE-CB5 (100 kHz, 2.2 W)
Typical 4H beam profile of CARBIDE-CB5
Typical 4H beam profile of CARBIDE-CB5 (100 kHz, 100 mW)
CARBIDE-CB3
CARBIDE-CB3 femtosecond laser
CARBIDE-CB3 femtosecond laser basic model
Drawing of CARBIDE-CB3
Drawing of CARBIDE-CB3
CARBIDE-CB3 femtosecond laser with 2H harmonic module
CARBIDE-CB3 femtosecond laser with 2H harmonic module
Drawing of CARBIDE-CB3 with 2H harmonic module
Drawing of CARBIDE-CB3 with 2H harmonic module
CARBIDE-CB3 femtosecond laser with 2H-3H/4H harmonic module
CARBIDE-CB3 femtosecond laser with 2H-3H/4H harmonic module
Drawing of CARBIDE-CB3 with 2H-3H harmonic module
Drawing of CARBIDE-CB3 with 2H-3H harmonic module
Drawing of CARBIDE-CB3 with 2H-4H harmonic module
Drawing of CARBIDE-CB3 with 2H-4H harmonic module
CARBIDE-CB3 femtosecond laser with tunable I-OPA-TW
CARBIDE-CB3 femtosecond laser with tunable I-OPA-HP
Drawing and output ports of CARBIDE-CB3 with tunable I-OPA-HP
Drawing and output ports of CARBIDE-CB3 with tunable I-OPA-HP
Drawing of CARBIDE-CB3 with tunable I-OPA-HP with SH extension
Drawing of CARBIDE-CB3 with tunable I-OPA-HP with SH extension
CARBIDE-CB3-40-200 with scientific interface module SCI-M
CARBIDE-CB3-40-200 with scientific interface module SCI-M
Drawing of CARBIDE-CB3-40-200 with scientific interface module
Drawing of CARBIDE-CB3-40-200 with scientific interface module
CARBIDE-CB5
CARBIDE-CB5 air-cooled femtosecond laser
CARBIDE-CB5 air-cooled femtosecond laser
Drawing of CARBIDE-CB5
Drawing of CARBIDE-CB5
Drawing of CARBIDE-CB5 with attenuator
Drawing of CARBIDE-CB5 with attenuator
CARBIDE-CB5 femtosecond laser with 2H harmonic module
CARBIDE-CB5 femtosecond laser with 2H harmonic module
Drawing of CARBIDE-CB5 with 2H harmonic module
Drawing of CARBIDE-CB5 with 2H harmonic module
Drawing of CARBIDE-CB5 with 2H-3H harmonic module
Drawing of CARBIDE-CB5 with 2H-3H harmonic module
Drawing of CARBIDE-CB5 with 2H-4H harmonic module
Drawing of CARBIDE-CB5 with 2H-4H harmonic module
CARBIDE-CB5 femtosecond laser with 2H-3H-4H harmonic module
CARBIDE-CB5 femtosecond laser with 2H-3H-4H harmonic module
CARBIDE-CB5 with tunable I-OPA-SH-TW-HP
CARBIDE-CB5 with tunable I-OPA-HP with SH extension
Drawing and output ports of CARBIDE-CB5 with tunable I-OPA-HP
Drawing and output ports of CARBIDE-CB5 with tunable I-OPA-HP
Drawing of CARBIDE-CB5 with tunable I-OPA-HP with SH extension
Drawing of CARBIDE-CB5 with tunable I-OPA-HP with SH extension
Tunable GHz and MHz Burst with Burst-in-Burst Capability

CARBIDE-CB3 lasers have an option for tunable GHz and MHz burst with burst-in-burst capability – called BiBurst. In standard mode, a single pulse is emitted at some fixed frequency. In burst mode, the output consists of pulse packets instead of single pulses. Each packet consists of a certain number of equally separated pulses. MHz-Burst contains N pulses with a nanosecond period, GHz-Burst contains P pulses with a picosecond period. If both bursts are used, the equally separated pulse packets contain sub-packets of pulses (burst-in-burst, BiBurst).

Automated Harmonic Generators

CARBIDE lasers equipped with automated harmonic generators (HGs) provide a selection of fundamental (1030 nm), second (515 nm), third (343 nm), or fourth (257 nm) harmonic outputs using software control.

HGs are perfect for industrial applications that require a single-wavelength output. Modules, mounted directly at the output of the laser, are fully integrated into the system.

Industrial-Grade Optical Parametric Amplifiers

The industrial-grade optical parametric amplifier I-OPA series marks a new era of simplicity in the world of tunable wavelength femtosecond light sources. Based on over 10 years of experience producing the ORPHEUS series of optical parametric amplifiers, this solution brings together the tunability of wavelength with the robust industrial-grade design. The I-OPA is a rugged module attachable to CARBIDE lasers, providing long-term stability comparable to that of the industrial-grade harmonic generators.

Scientific Interface Module for CARBIDE

The CARBIDE scientific interface module extends the versatility of the industrial-grade laser and makes it particularly attractive to scientific applications. This module incorporates multiple options such as a simultaneous or separate oscillator output, a second compressed or uncompressed laser output, and seeding by an external oscillator. For example, using it, the CARBIDE laser can be seeded by an oscillator from another CARBIDE laser, thus ensuring a precise optical synchronization between the two lasers. All the aforementioned outputs can be equipped with automated power attenuators. All options are compatible in between.
